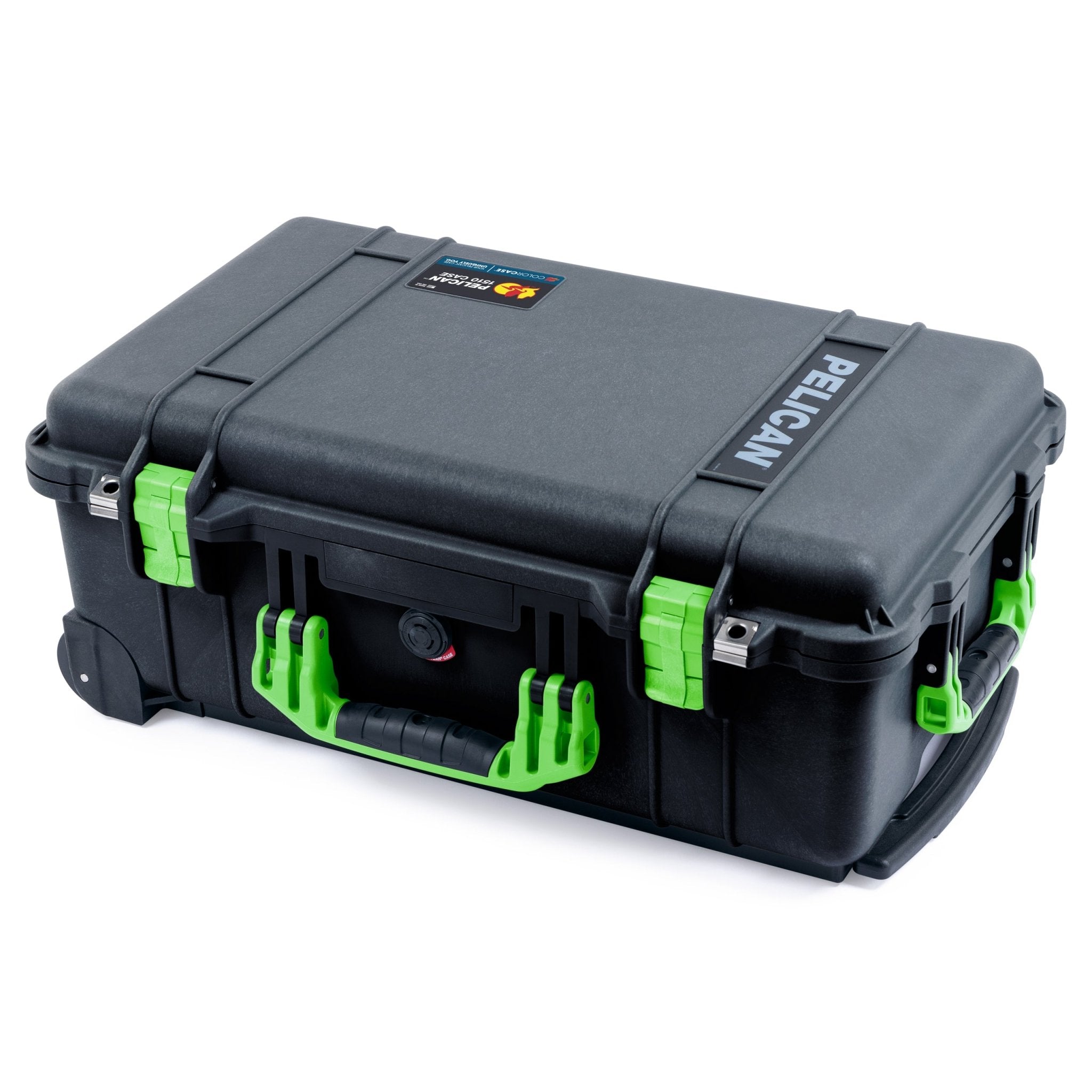

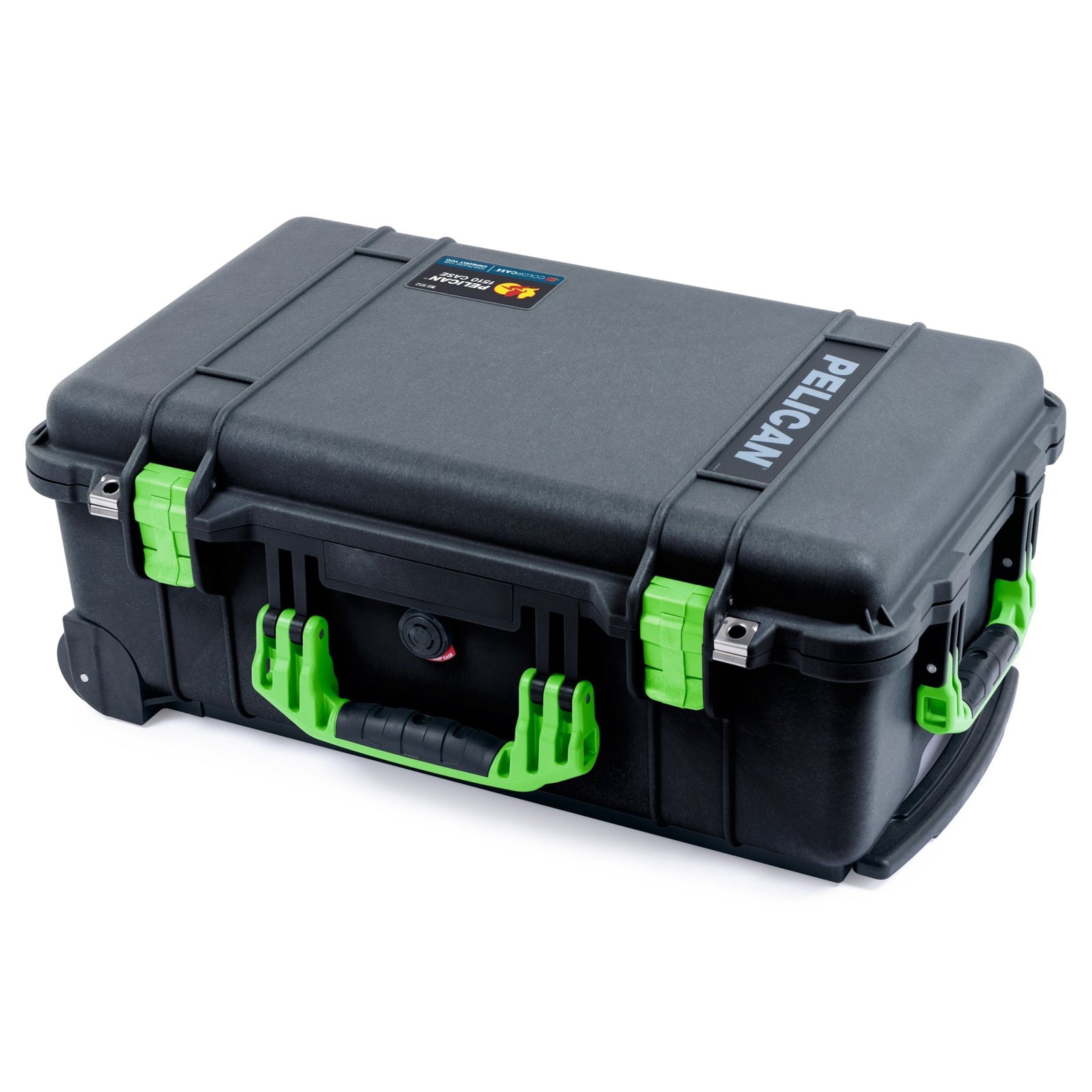

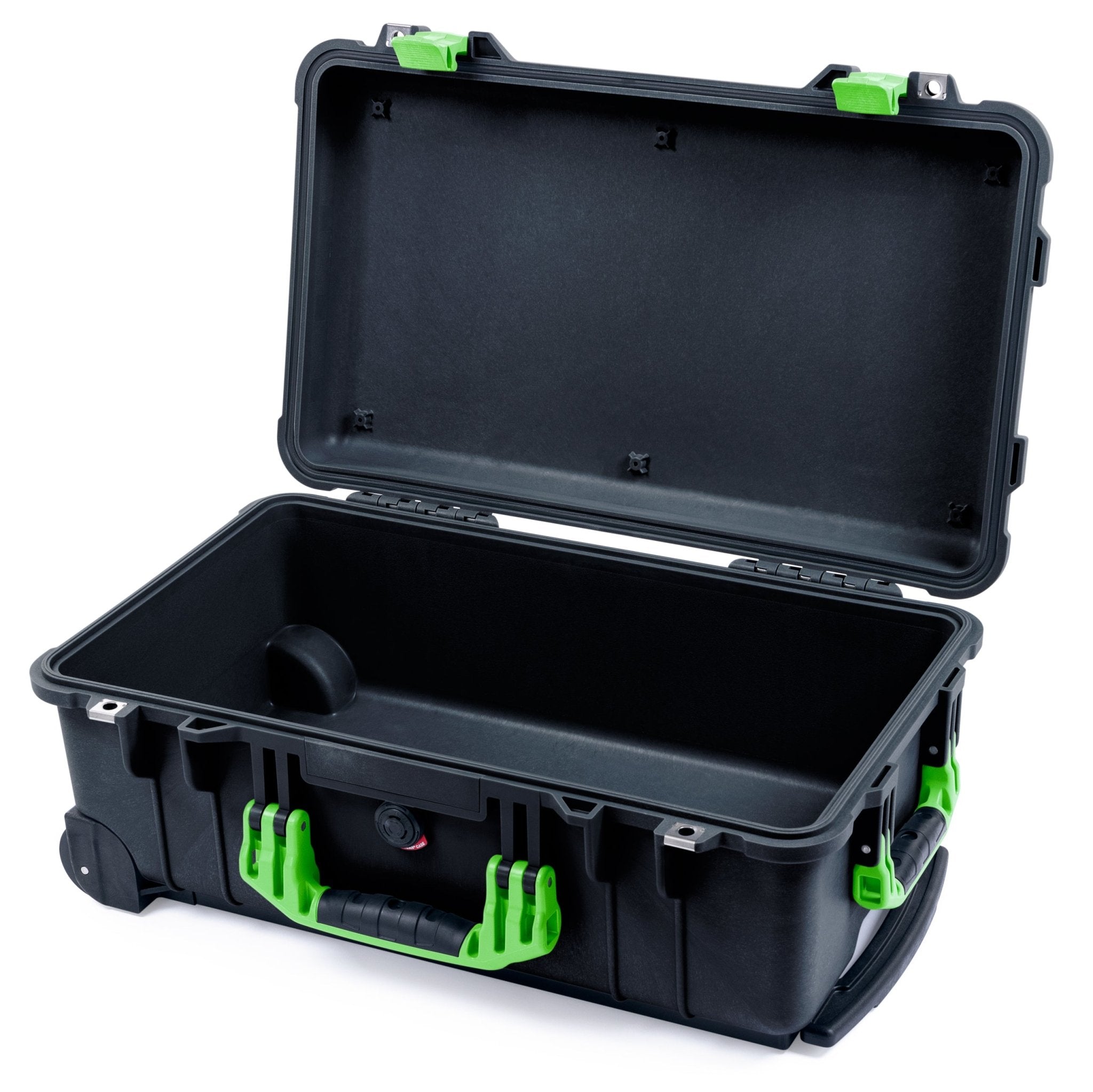

Pelican 1510 Case - Black & Lime Green

• Lid Depth: 1.79" (4.5 cm)
• Bottom Depth: 5.79" (14.7 cm)
• Total Depth: 7.58" (19.3 cm)
• Interior (L X W X D): 19.75" x 11.00" x 7.58" (50.2 x 27.9 x 19.3 cm)
• Exterior (L X W X D): 22.00" x 13.81" x 9.00" (55.9 x 35.1 x 22.9 cm)
• Weight (Empty): 11.99 lbs (5.4 kg)

• Internal Volume: 0.96 ft³
• Buoyancy: 64.15 lbs
• Case Material: Polypropylene
• Latch Material: ABS
• Pins Material: Stainless Steel
• Purge Body Material: ABS
• Purge Vent Material: 3 Micron Hydrophobic Non-Woven

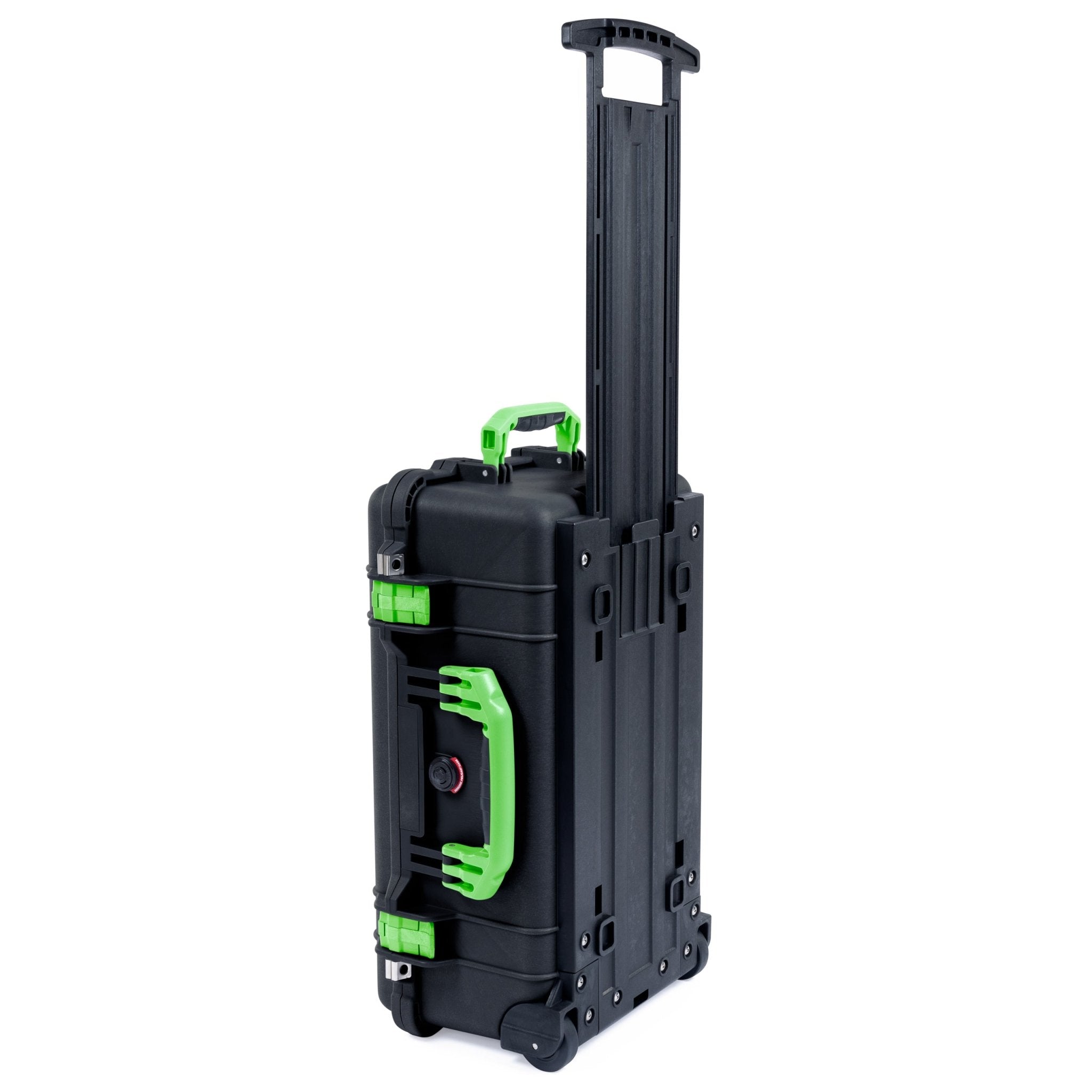

• Wheels Material: Polyurethane, Stainless Steel
• Extendable Handle Material: Polypropylene

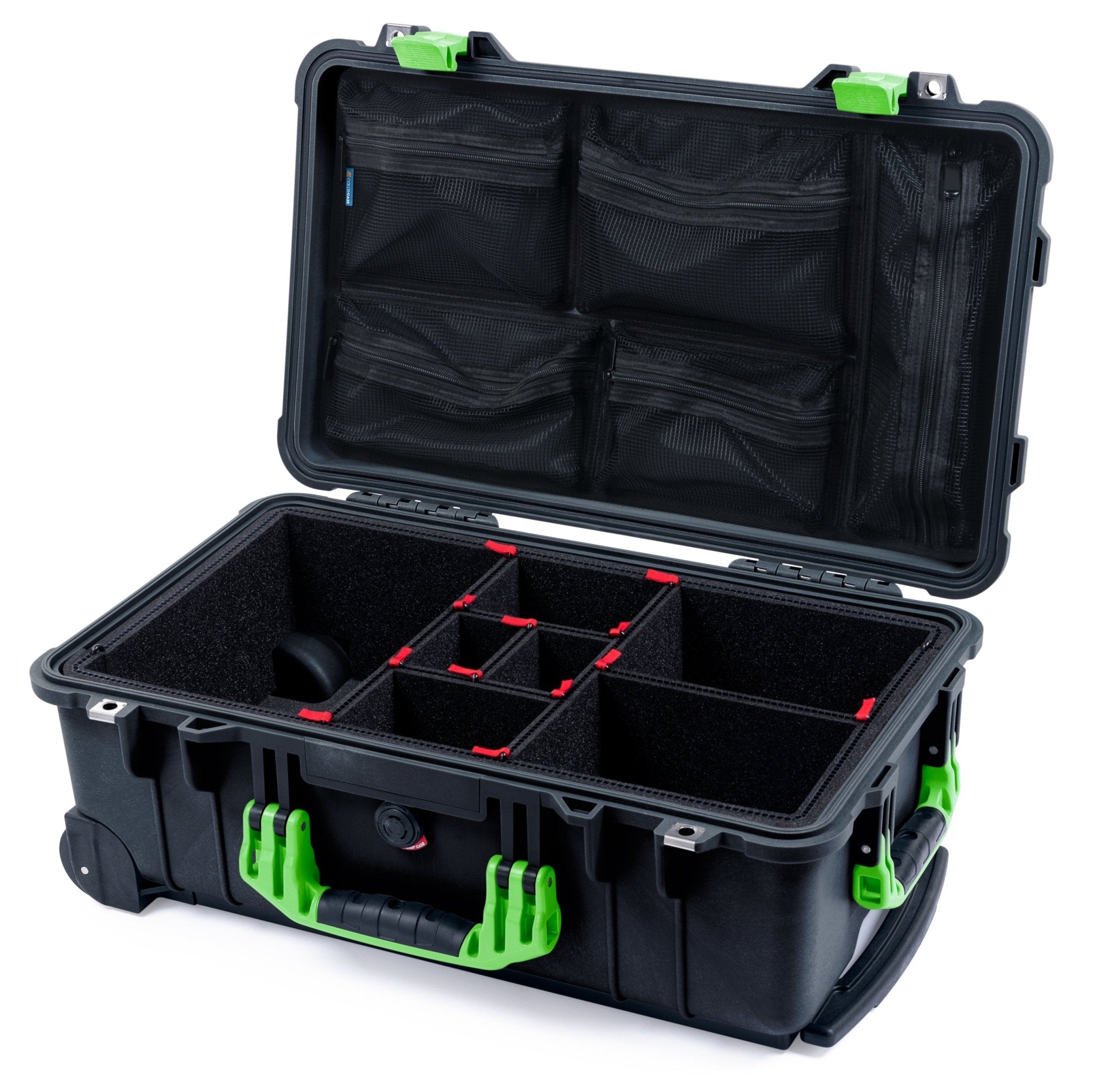

Mesh Lid Organizer

• Five mesh zipper pockets, plastic backing
• Installs with 6 included screws

Computer Lid Pouch

• Fits laptop computers up to 15" x 11"
• Removable computer pouch with additional zipper pouch, plastic backing
• Installs with 6 included screws

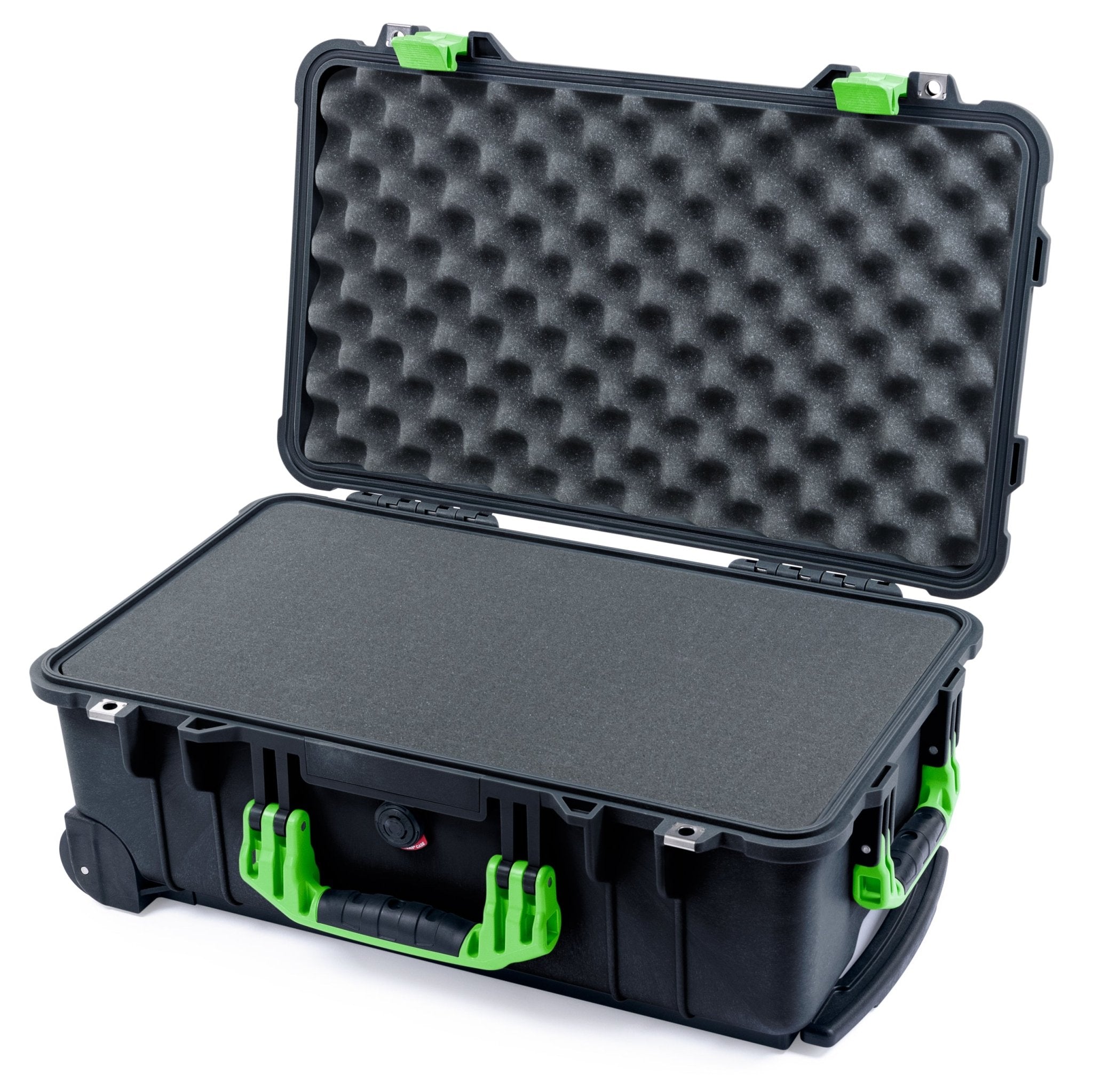

Pick & Pluck Foam

• Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.

TrekPak Divider System

• Custom length perimeter insert for Pelican 1510, two (2) divider inserts 20" in length, two (2) divider inserts 16" in length; & one (1) divider insert 6" in length
• One cutter tool, 20 pins, & 20 red pull tabs
• Polyurethane bottom foam

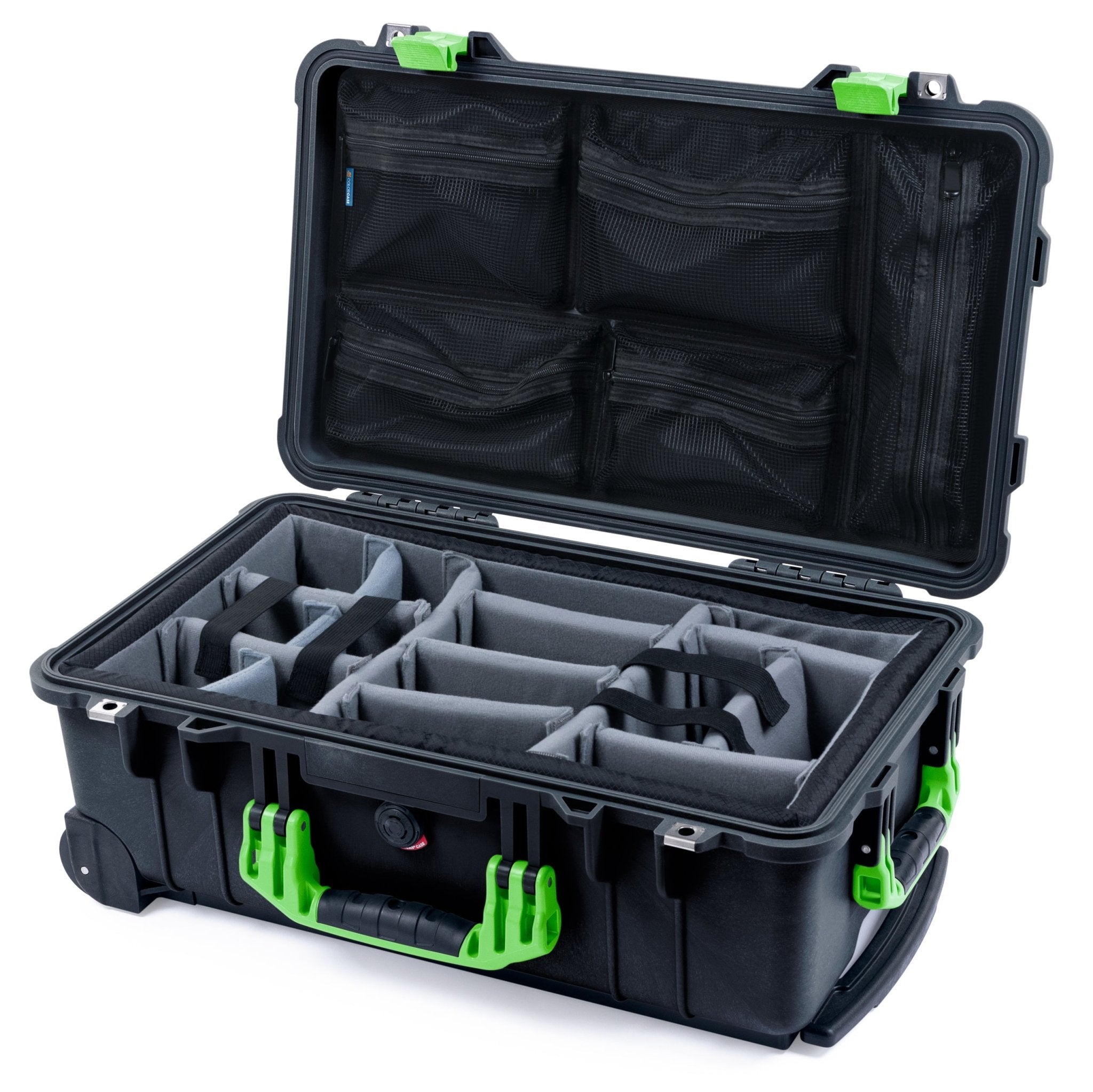

Gray Microfiber Padded Dividers

• 5" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
• Two (2) 9.5" long, 3/4" thick hinged microfiber dividers
• Nine (9) 5.5" long, 3/4" thick microfiber dividers
• Three (3) 2.5" long, 3/4" thick microfiber dividers
• Four (4) 6" long, elastic Velcro straps

Yellow Microfiber Padded Dividers

• 5" deep black & yellow adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
• Two (2) 9.5" long, 3/4" thick hinged microfiber dividers
• Six (6) 5.5" long, 3/4" thick microfiber dividers
• Two (2) 2.5" long, 3/4" thick microfiber dividers
• Four (4) 6" long, elastic Velcro straps

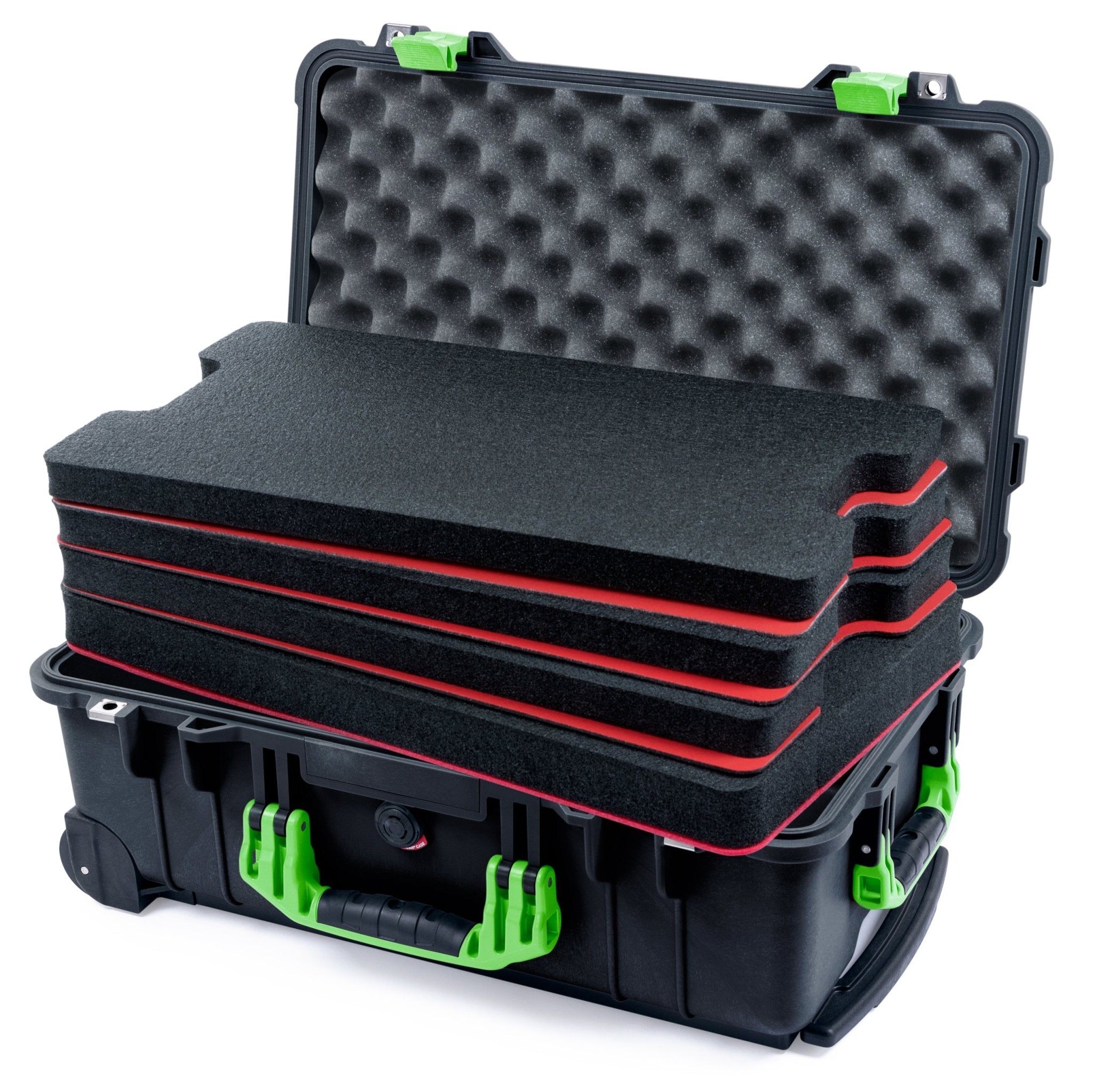

Custom Tool Control Kit

• Three (3) black 7/8" thick polyethylene foam inserts
• One (1) black 2" thick polyethylene bottom foam insert
• Three (3) red ABS plastic bottom backers (for removable trays) & one (1) red foam bottom backer (for bottom tray)
• DIY Assembly: Trace your tools, carefully cut black foam to create tool pockets, and glue black foam to red ABS plastic for shadowboard effect
• Includes polyurethane convolute lid foam

Download CAD Drawings*

• Pelican 1510 Lid Dimensional Drawing
• Pelican 1510 Base Dimensional Drawing

*CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
