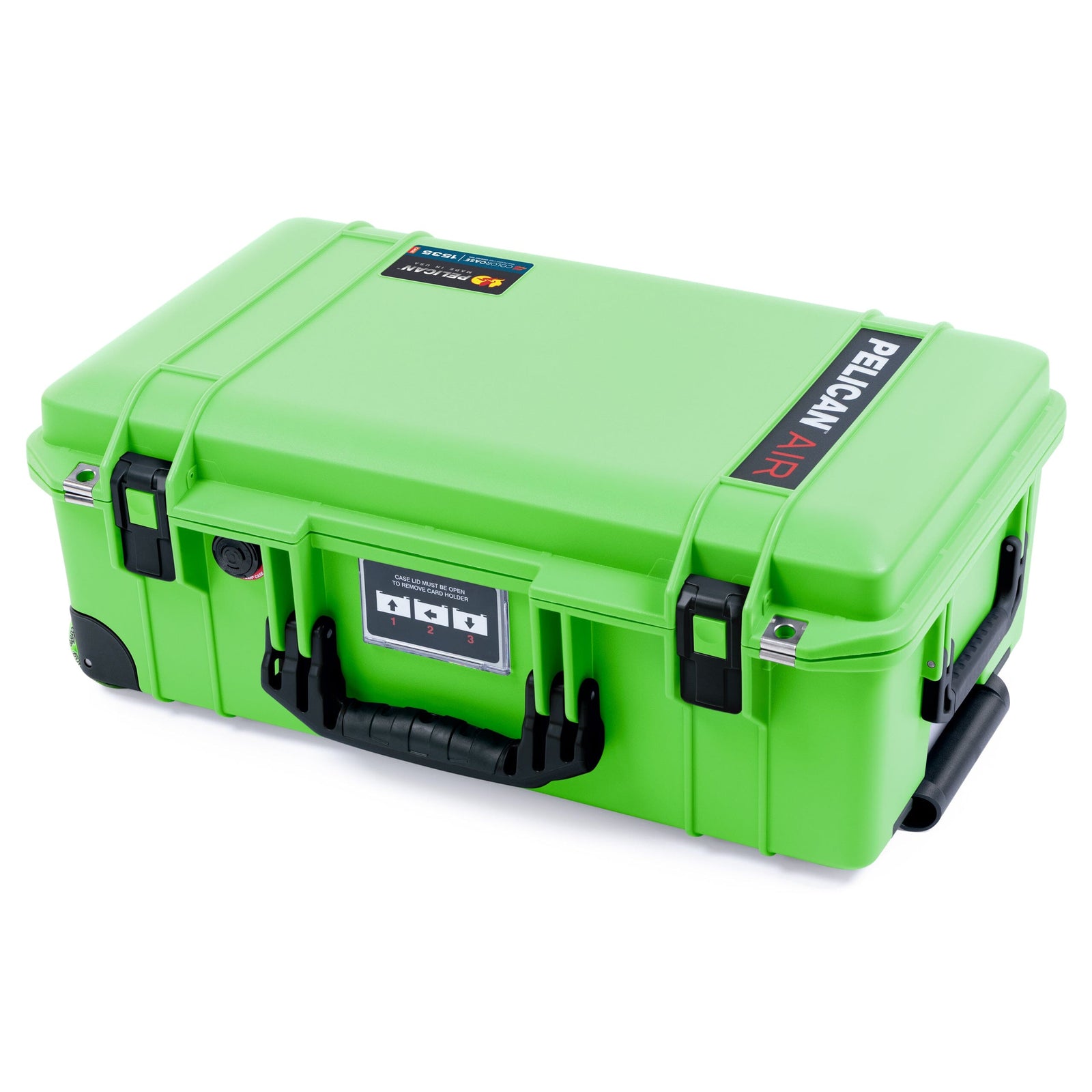

Pelican 1535 Air Formula Series Case - Hinwil

Introducing ColorCase's limited edition Formula Series fan builds! These cases are manufactured in Torrance, CA and hand-assembled in Las Vegas, NV, home of the Las Vegas Grand Prix! Each case features custom combinations of case, handle, latch body, latch button, trolley, and wheel colors for all ten constructors! We've even included and pre-installed our brand-new super-smooth, ultra-quiet Landing Gear wheels! These are the ultimate Pelican cases for the Formula racing super fan!

• Features

• Dimensions

• Specs

• Accessories

• Drawings

• • Meets FAA carry-on luggage regulations
  • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Super-lightweight proprietary HPX²™ Polymer

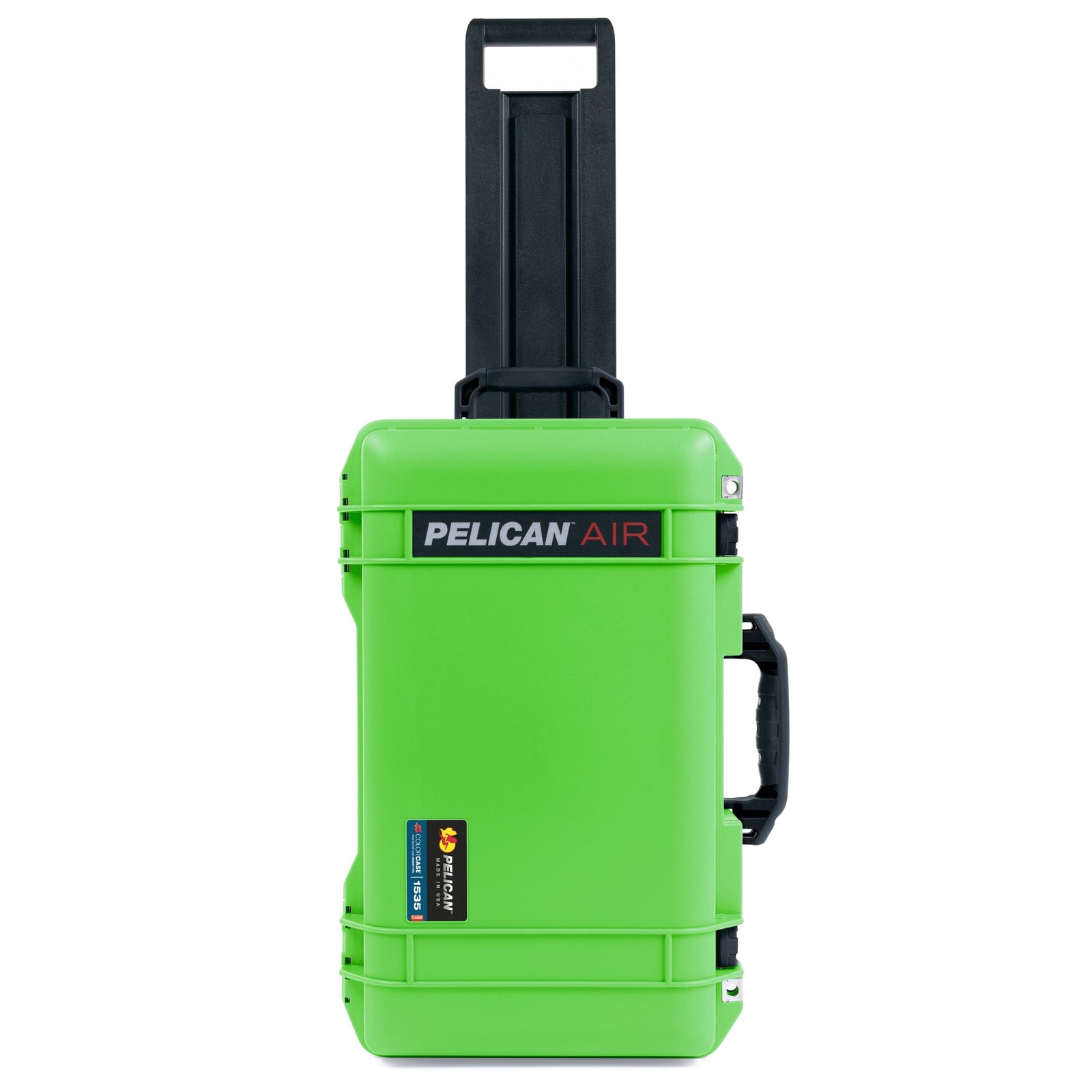

  • Retractable 16" extension handle and polyurethane wheels with stainless steel bearings for rolling travel
  • Two easy to open double-throw latches
  • Ergonomic comfort grip rubber over-molded handles
  • Card holder that can be placed on the front or side of the case
  • Stainless steel hinge pins and reinforced padlock protectors
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 2.00" (5.1 cm)
  • Bottom Depth: 5.21" (13.2 cm)
  • Total Depth: 7.21" (17.8 cm)

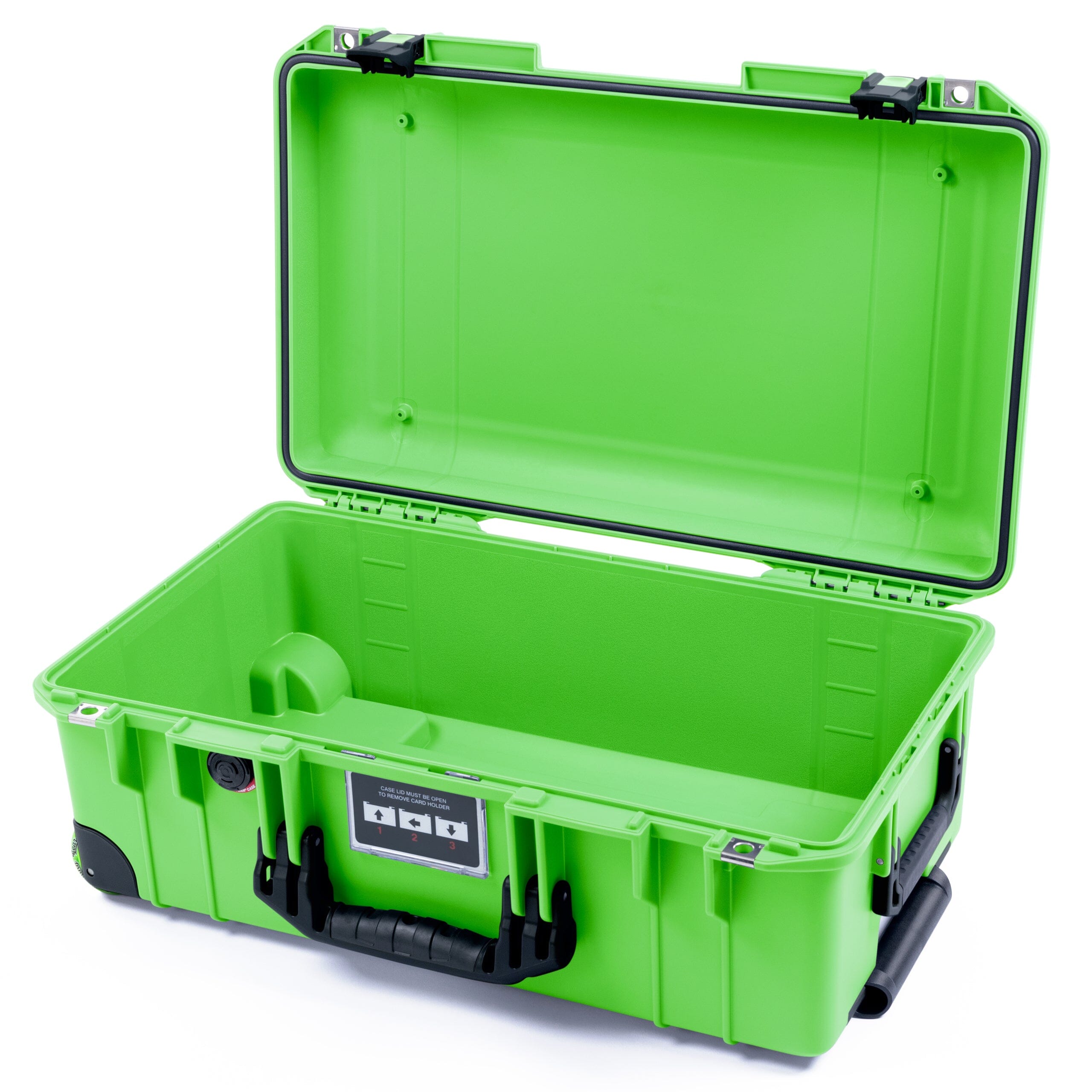

  • Interior (L X W X D): 20.39" x 11.20" x 7.21" (51.8 x 28.4 x 17.8 cm)
  • Exterior (L X W X D): 21.96" x 13.97" x 8.98" (55.8 x 35.5 x 22.8 cm)
  • Weight (Empty): 8.69 lbs (3.9 kg)
• • Internal Volume: 0.95 ft³
  • Buoyancy: 64.80 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven
  • Wheels Material: Polyurethane, Stainless Steel
  • Extendable Handle Material: Polypropylene

• Mesh Lid Organizer

  • Five mesh zipper pockets, plastic backing
  • Installs with 6 included screws



  Computer Lid Pouch

  • Fits laptop computers up to 15" x 11"
  • Removable computer pouch with additional zipper pouch, plastic backing
  • Installs with 6 included screws



  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1535 Air, two (2) divider inserts 20" in length, one (1) divider insert 15" in length; & one (1) divider insert 6" in length
  • One cutter tool, 20 pins, & 20 red pull tabs
  • Polyurethane bottom foam



  Gray Microfiber Padded Dividers

  • 5" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 9.5" long, 3/4" thick hinged microfiber dividers
  • Nine (9) 5.5" long, 3/4" thick microfiber dividers
  • Three (3) 2.5" long, 3/4" thick microfiber dividers
  • Four (4) 6" long, elastic Velcro straps



  Yellow Microfiber Padded Dividers

  • 5" deep black & yellow adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 9.75" long, 3/4" thick hinged microfiber dividers
  • Six (6) 5.75" long, 3/4" thick microfiber dividers
  • Three (3) 2.75" long, 3/4" thick microfiber dividers
  • Four (4) 6" long, elastic Velcro straps



  Custom Tool Control Kit

  • Three (3) black 7/8" thick polyethylene foam inserts
  • One (1) black 2" thick polyethylene bottom foam insert
  • Three (3) red ABS plastic bottom backers (for removable trays) & one (1) red foam bottom backer (for bottom tray)
  • DIY Assembly: Trace your tools, carefully cut black foam with to create tool pockets, peel adhesive backing from foam, and affix foam to red ABS plastic for shadowboard effect
  • Includes polyurethane convolute lid foam

• Download CAD Drawings*

  • Pelican 1535 Air Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
