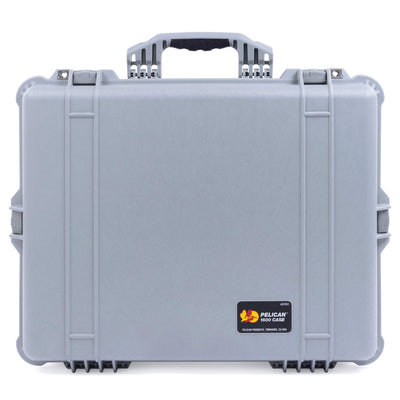

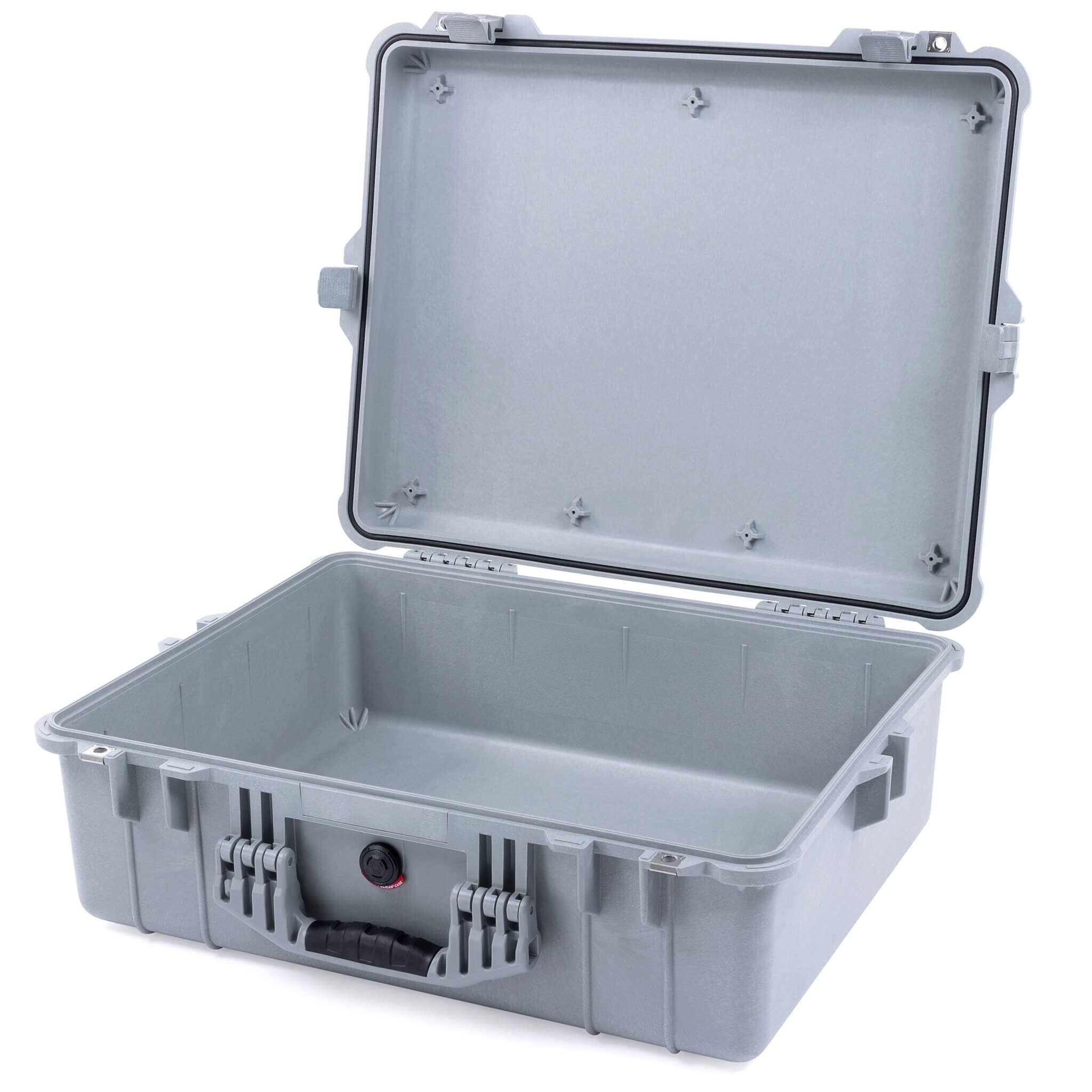

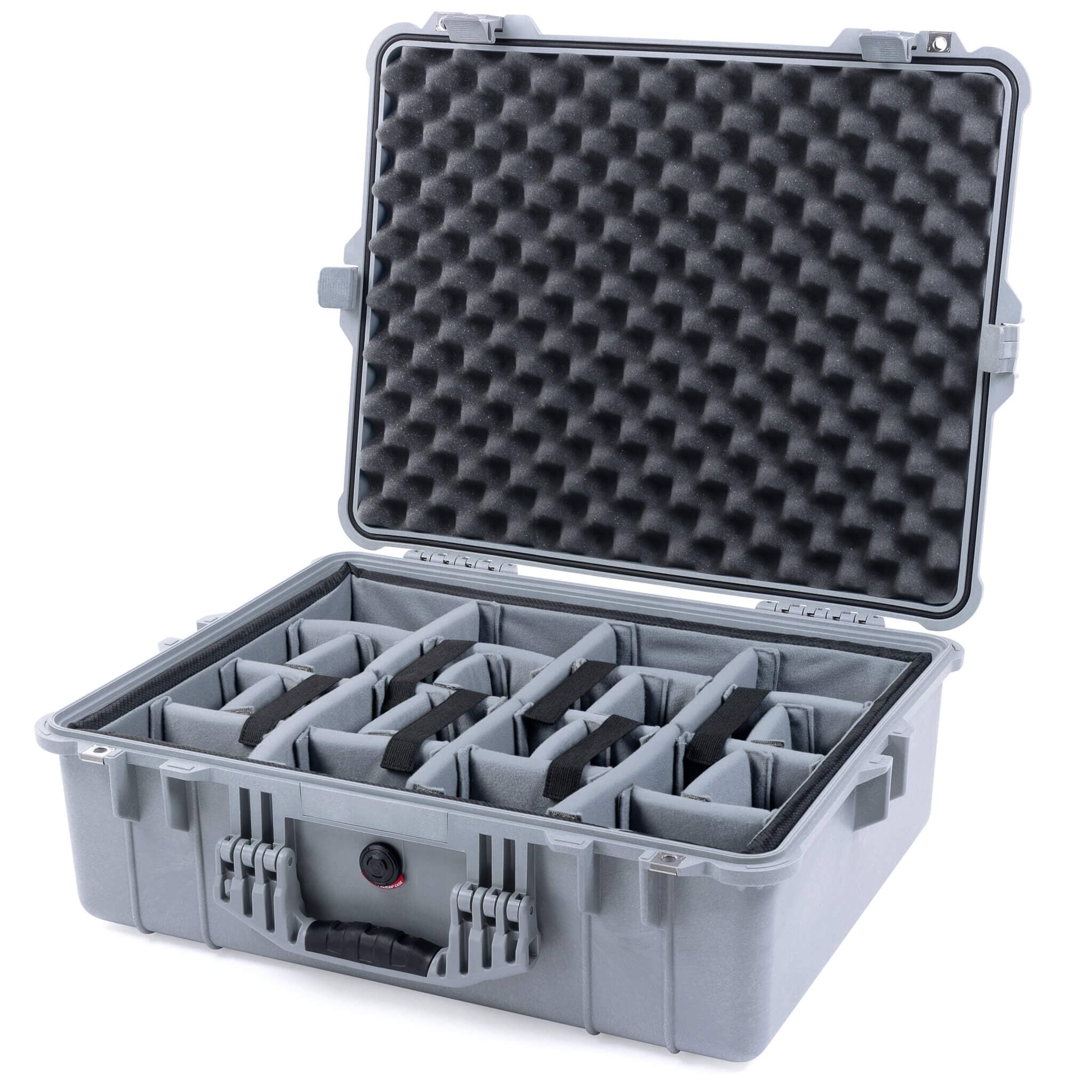

Pelican 1600 Case, Silver

• Lid Depth: 1.75" (4.4 cm)
• Bottom Depth: 6.12" (15.5 cm)
• Total Depth: 7.87" (20 cm)
• Interior (L X W X D): 21.51" x 16.54" x 7.99" (54.6 x 42 x 20.3 cm)
• Exterior (L X W X D): 24.39" x 19.36" x 8.79" (62 x 49.2 x 22.3 cm)
• Weight (Empty): 13.00 lbs (5.9 kg)

• Internal Volume: 1.65 ft³
• Buoyancy: 117.00 lbs
• Case Material: Polypropylene
• Latch Material: ABS
• Pins Material: Stainless Steel
• Purge Body Material: ABS
• Purge Vent Material: 3 Micron Hydrophobic Non-Woven

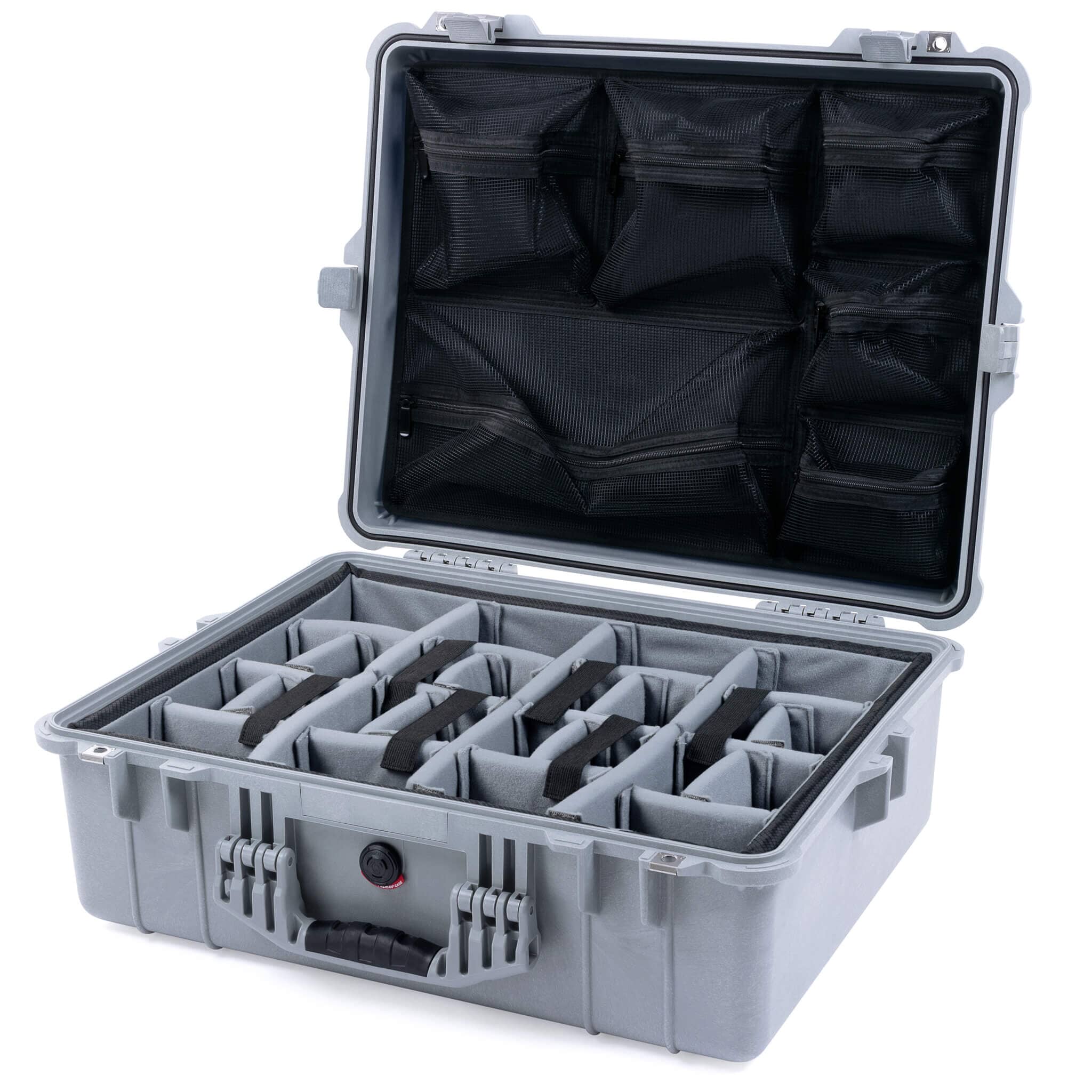

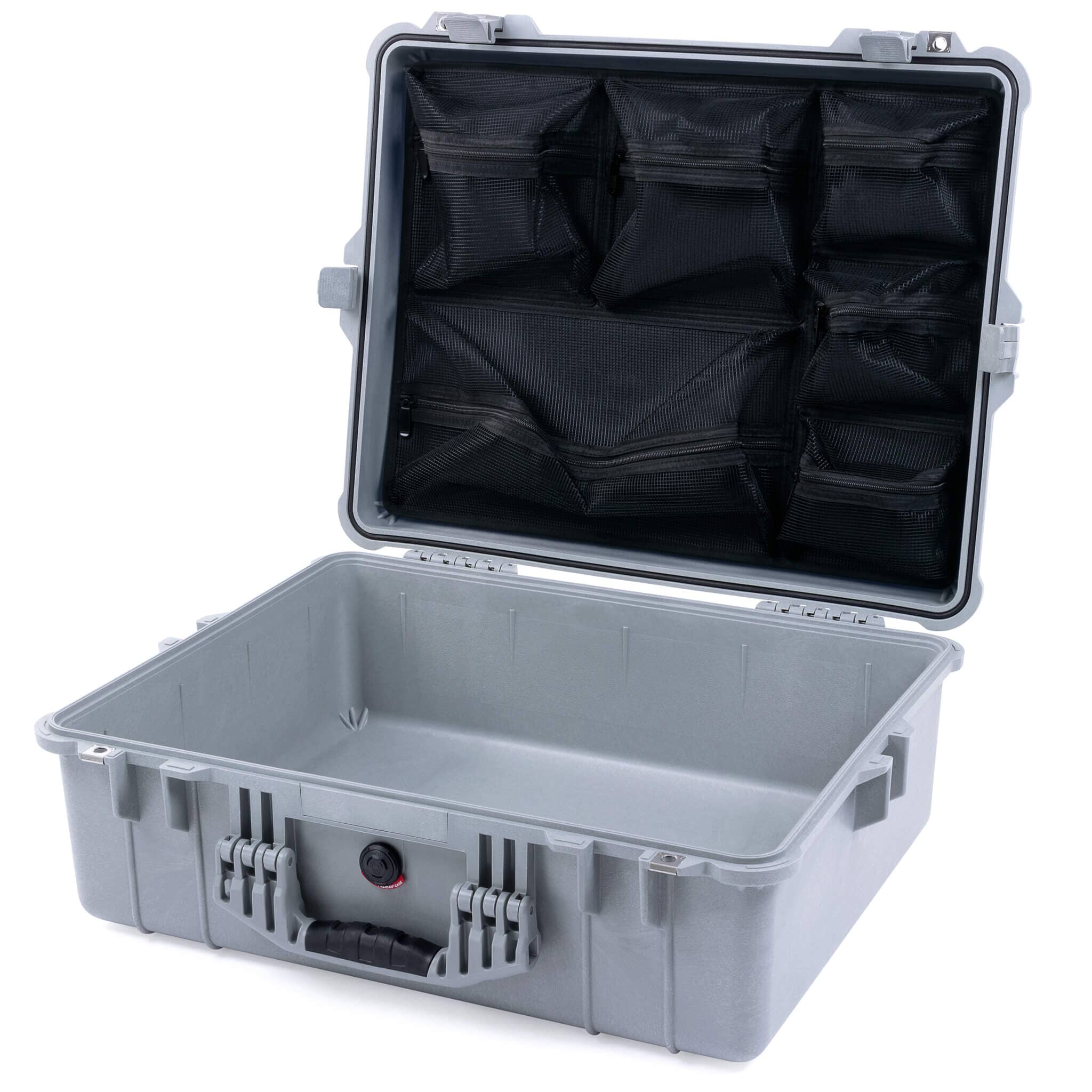

CVPKG Mesh Lid Organizer

• Five mesh zipper pockets, plastic backing
• Installs with 7 included screws

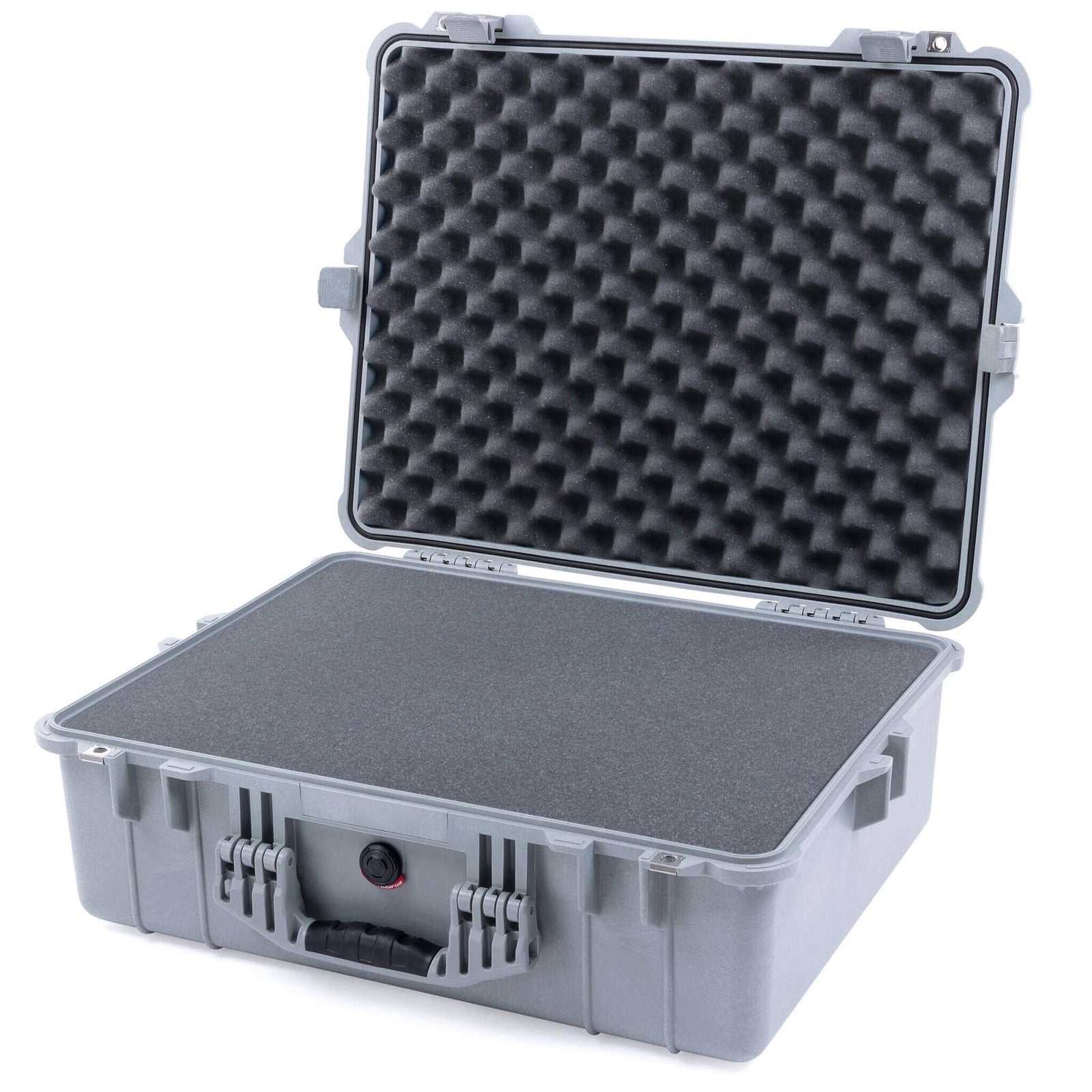

Pick & Pluck Foam

• Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.

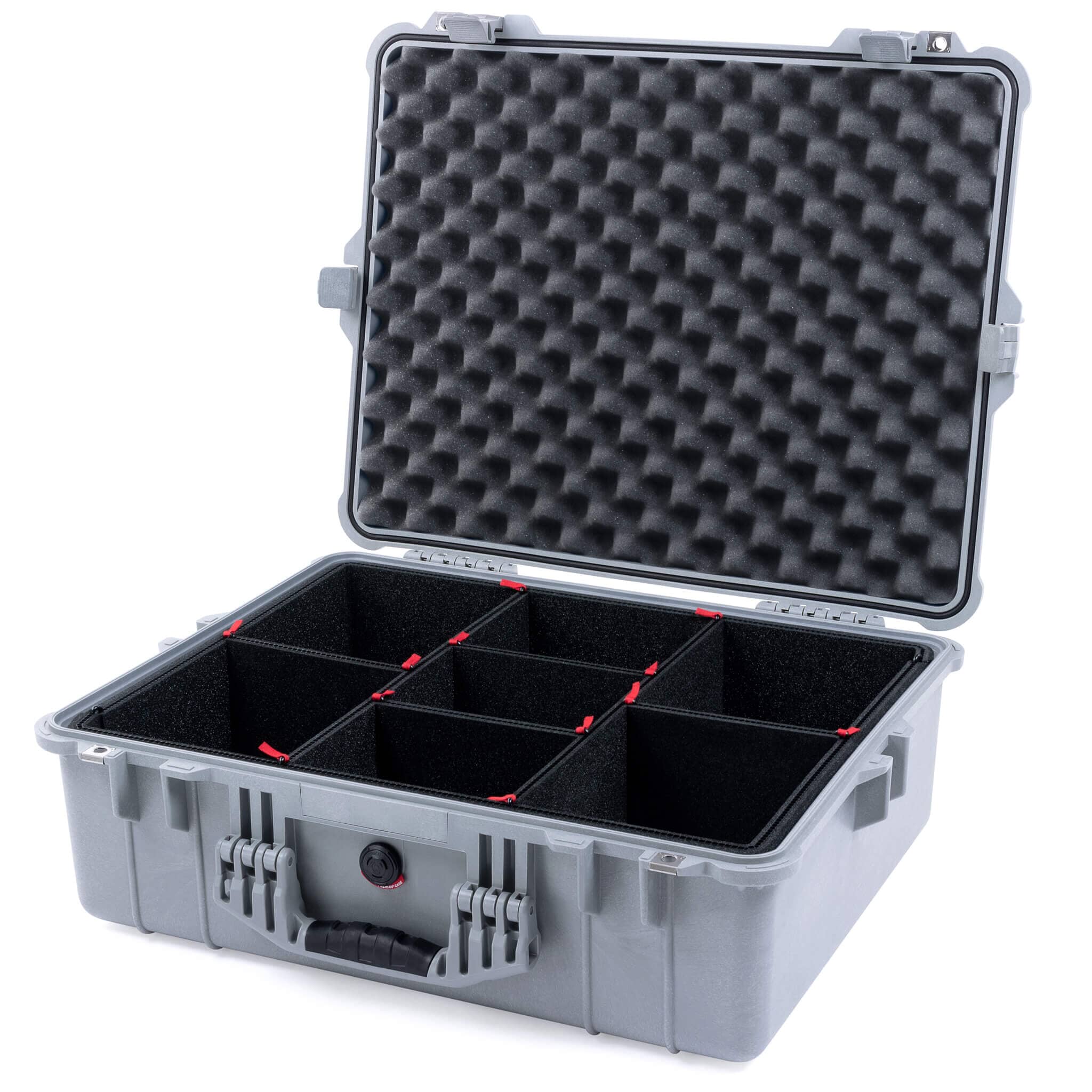

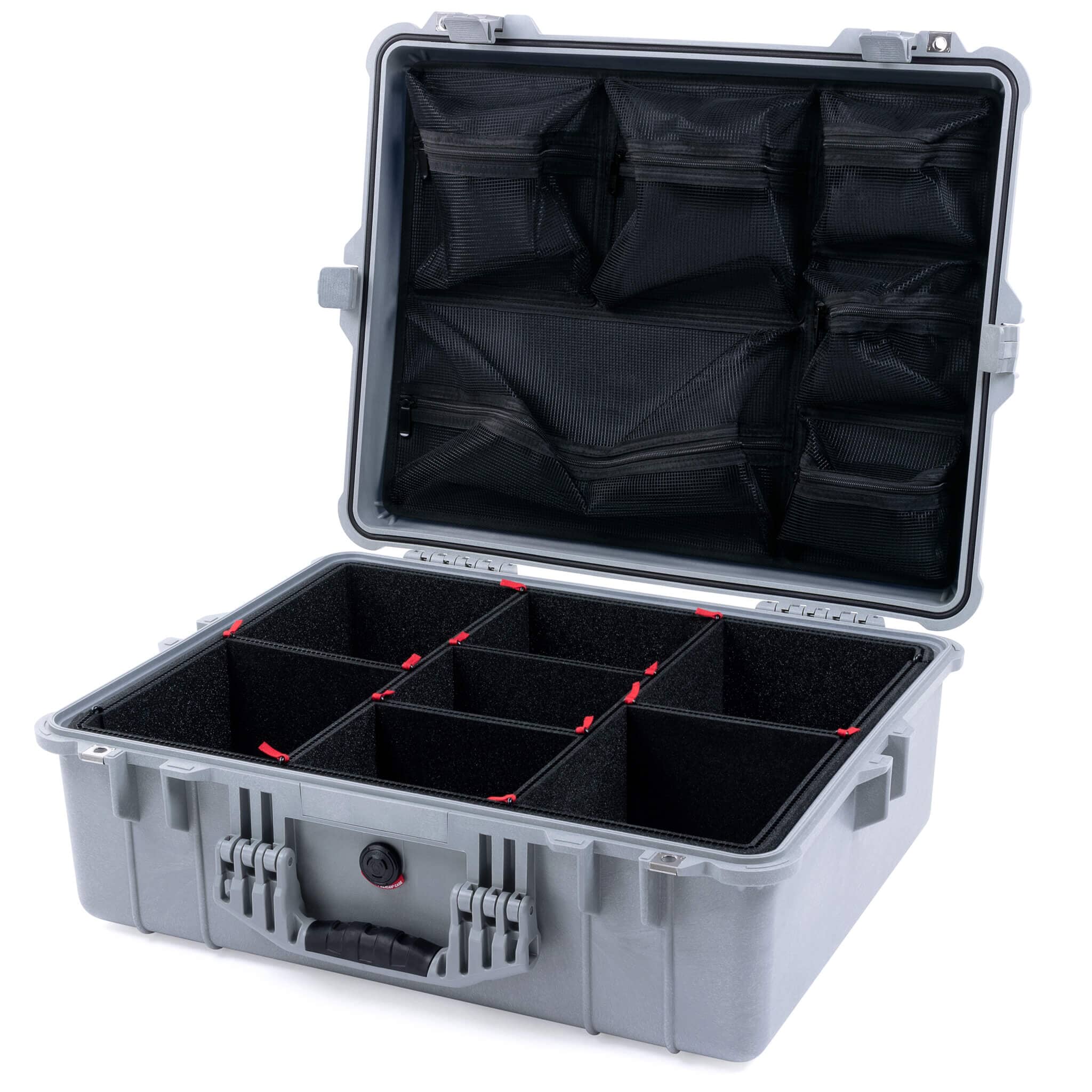

TrekPak Divider System

• Custom length perimeter insert for Pelican 1600, two (2) divider inserts 23" in length, & two (2) divider inserts 9" in length
• One cutter tool, 30 pins, & 30 red pull tabs
• Polyurethane bottom foam

Download CAD Drawings*

• Pelican 1600 Lid Dimensional Drawing
• Pelican 1600 Base Dimensional Drawing

*CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
