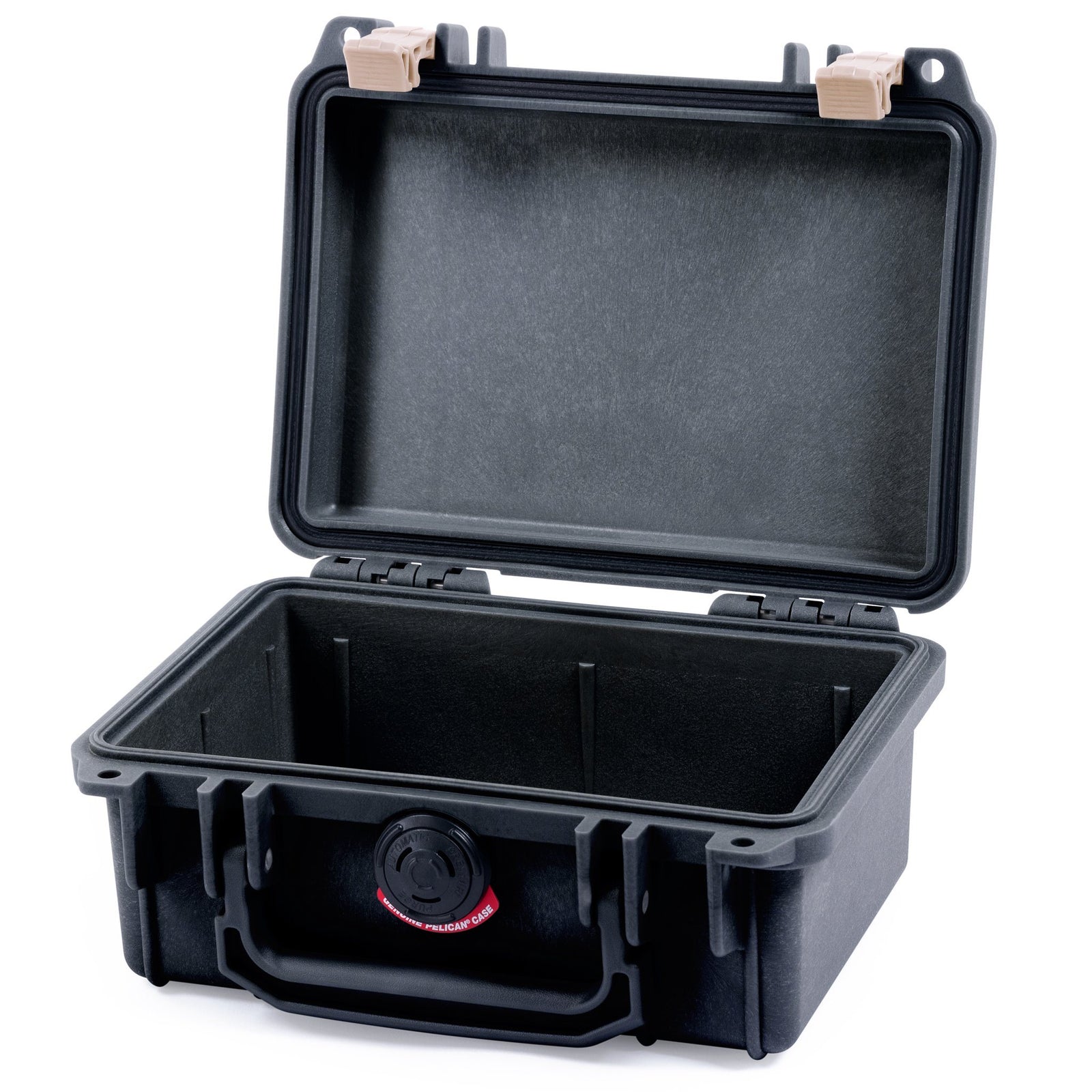

Pelican 1120 Case, Black with Desert Tan Latches

• Lid Depth: 0.50" (1.3 cm)
• Bottom Depth: 2.56" (6.5 cm)
• Total Depth: 3.06" (7.8 cm)
• Interior (L X W X D): 7.29" x 4.78" x 3.06" (18.5 x 12.1 x 7.8 cm)
• Exterior (L X W X D): 8.41" x 6.76" x 3.87" (21.4 x 17.2 x 9.8 cm)
• Weight (Empty): 1.34 lbs (0.6 kg)

• Internal Volume: 0.07 ft³
• Buoyancy: 4.37 lbs
• Case Material: Polypropylene
• Latch Material: ABS
• Pins Material: Stainless Steel
• Purge Body Material: ABS
• Purge Vent Material: 3 Micron Hydrophobic Non-Woven

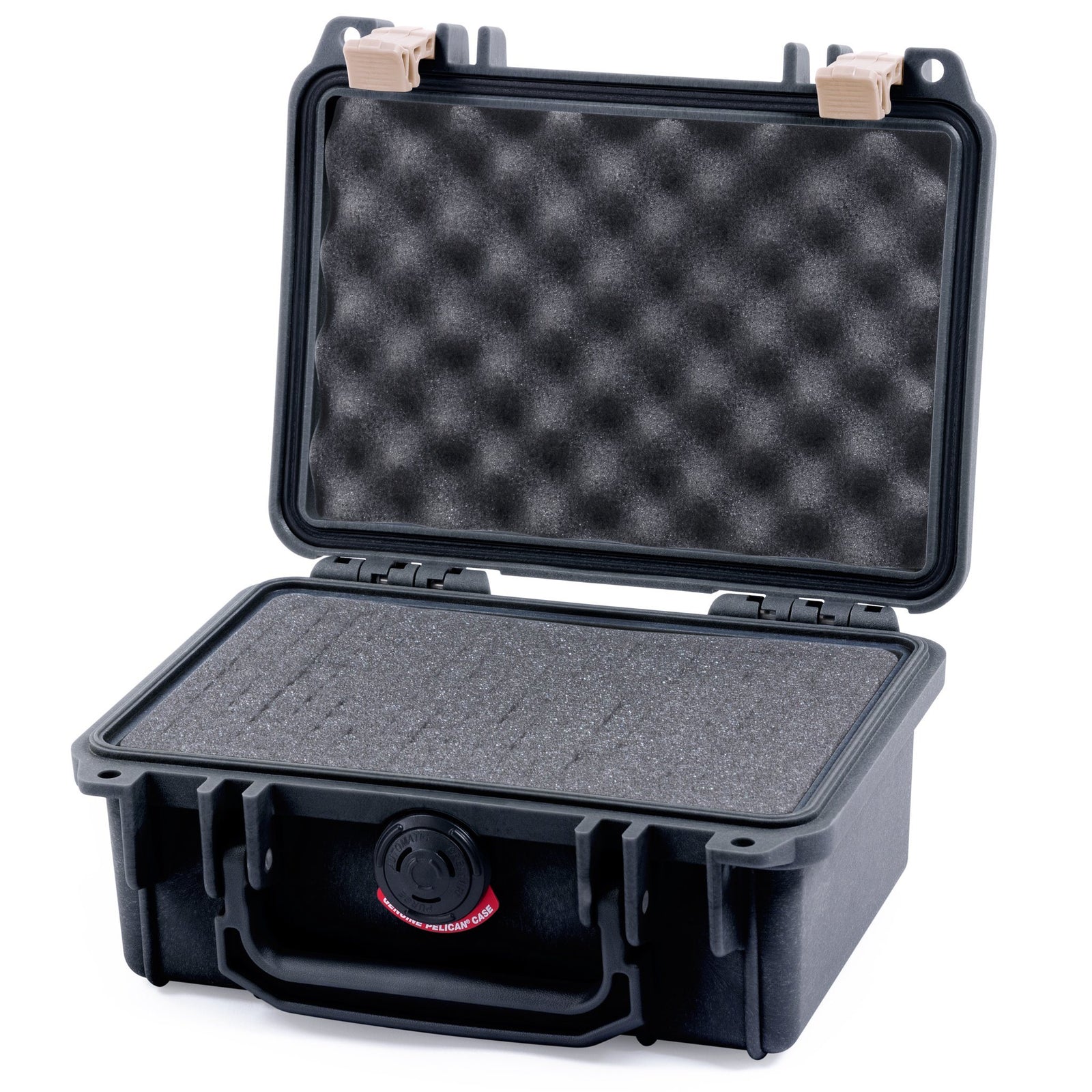

Pick & Pluck Foam

• Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.

Download CAD Drawings*

• Pelican 1120 Lid Dimensional Drawing
• Pelican 1120 Base Dimensional Drawing

*CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
